Description

Control-Industrial Radio Remote

________________________________________

Product Description:

Industrial Radio Remote Control

Frequency Range: 433~434 MHz (62 channels)

Modulation: Digital Frequency Modulation

Encoding / Decoding Reference: Microprocessor Controlled

Operating Range: >100 Meters / 300 Feet

Frequency Control: Synthesized PLL

Responding Time: 40ms (average)

Receiver Sensitivity: -166dBm

Transmitter Voltage: 3.0VDC

Output Contact Rating: 250VAC@ 10A

Available Voltages:
24VAC ~ 48VAC @ 50/60HZ

100VAC ~ 460VAC@ 50/60HZ

12 ~ 24 VDC

Enclosure Rating: IP-66 / NEMA-4

Operating Temperature: – 25℃ ~ 75℃ / -13℉ ~ 167℉

________________________________________

Transmitter Dimensions:

138mm × 69mm × 34mm (Flex 4 models)

184mm × 69mm × 34mm (Flex 8 models)

230mm × 69mm × 35mm (Flex 12 models)

________________________________________

Industrial Radio Remote Control
Receiver Dimensions:

165mm × 125mm × 75mm (Flex 4 models)

363mm × 228mm × 70mm (Flex 8 & 12 models)

________________________________________

Transmitter Weight:

192g / 6.8oz (Flex 4 models)

242g / 8.5oz (Flex 8 models)

296g / 10.4oz (Flex 12 models)

________________________________________

Receiver Weight:

1,800g / 4.0lb (Flex 4 models)

2,500g / 5.5lb (Flex 8 & 12 modles)

________________________________________

Product Specifications:

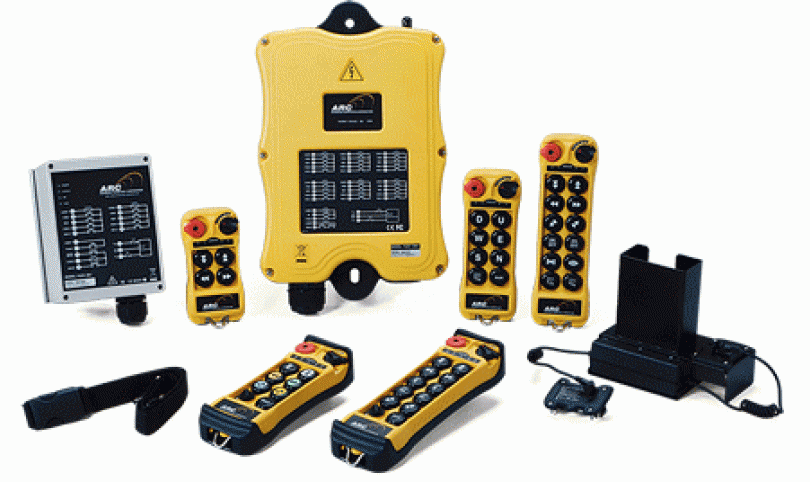

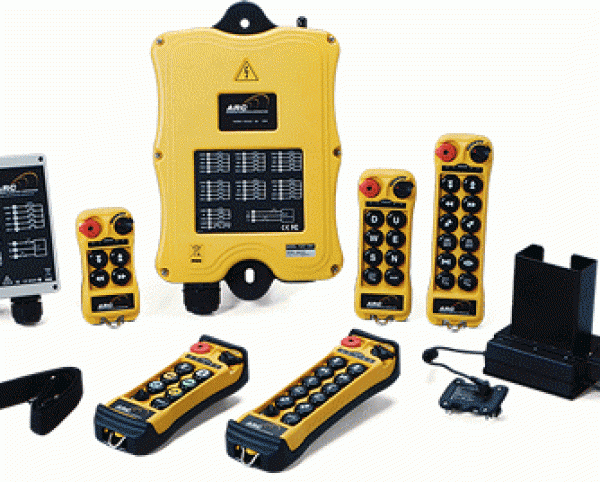

Standard Models

FLEX 4ES: Four 1- step push buttons

FLEX 8ES: Fight 1- step push buttons

FLEX 12ES: Twelve 1- step push buttons

FLEX 4EX: Four 2- step push buttons

FLEX 8EX: Eight 2- step push buttons

FLEX 12EX: Twelve 2- step push buttons
